What Is Unsprung Weight — And Why It Matters More Than Total Weight
You've probably heard that lighter wheels improve handling. But the reason goes deeper than "less weight = faster." It's about where that weight sits in relation to your suspension — and why 5 kg saved on wheels feels more significant than 20 kg removed from the trunk.
Sprung vs Unsprung Weight: The Core Difference
Every kilogram on your car falls into one of two categories.
Sprung weight is everything supported by the suspension — the chassis, body, engine, passengers, fuel. The springs and dampers carry this mass and isolate it from road inputs.

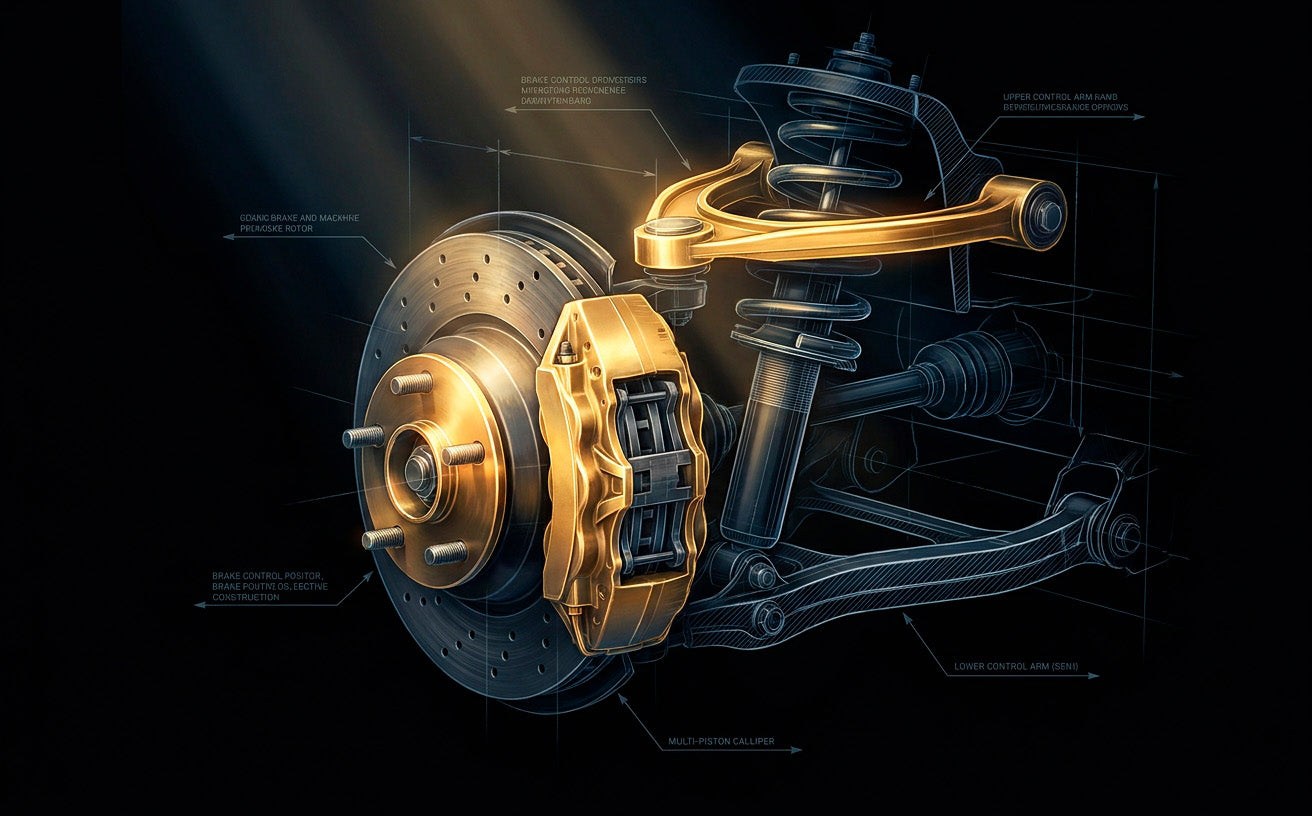

Unsprung weight is everything that moves with the wheel, regardless of suspension position — wheels, tires, brake rotors, calipers, hubs, and the lower portion of suspension links (control arms, tie rods, half-shafts). This mass is not isolated from the road. Every bump, crack, and imperfection transmits directly through it.
The distinction matters because sprung and unsprung mass behave completely differently when the car encounters a road surface.
What Counts as Unsprung Weight?
Here's a rough breakdown of unsprung components on a typical performance car:
- Wheels — 9–14 kg each depending on material and size
- Tires — 8–12 kg each
- Brake rotors — 6–10 kg each (front)
- Brake calipers — 3–6 kg each
- Hub and bearing assembly — 2–4 kg each
- Portion of control arms and links — varies by design
Total unsprung mass on a typical sports car: 80–120 kg across all four corners. That's roughly 6–8% of total vehicle weight — a relatively small fraction, but one with an outsized effect on dynamics.
Why Unsprung Weight Has Such a Large Effect
Suspension Response Speed
When a wheel hits a bump, the suspension has to move that wheel vertically and bring it back to the road surface as quickly as possible. The faster it returns, the more continuously the tire stays in contact with the ground.
The speed of this response is governed by the ratio of spring force to the mass being moved — the unsprung mass. A heavier wheel requires more force to accelerate upward over a bump and more force to pull it back down. With a lighter wheel, the suspension can respond faster to the same input, keeping the tire more consistently planted.
This is why reducing unsprung weight improves handling on imperfect roads more than reducing the same weight from the passenger cabin.
Rotational Inertia
Wheels don't just move up and down — they spin. Rotating mass has inertia that resists changes in speed, and that inertia scales with the square of the radius. A kilogram saved at the rim of a wheel has roughly four times the effect on rotational inertia compared to the same kilogram saved at the center.
This is why spoke geometry matters — wide, heavy rim flanges are the worst place to carry weight on a wheel. It's also why forged wheels, which can be machined thinner at the rim without sacrificing structural integrity, spin up faster and respond more quickly to throttle and braking inputs.
Gyroscopic Stability
Spinning wheels act as gyroscopes. Heavier wheels generate more gyroscopic force, which resists changes in direction. Reducing wheel mass reduces this effect, making the steering feel lighter and more responsive — particularly noticeable in quick direction changes on track.
The Numbers: How Much Does It Actually Matter?
Engineering calculations and real-world testing consistently show:
- 1 kg saved per wheel (4 kg total) from the rim area is roughly equivalent in handling effect to removing 10–15 kg of sprung mass from the vehicle
- A typical switch from OEM cast wheels to quality forged monoblock saves 2–3 kg per wheel — equivalent to removing 80–180 kg of sprung weight
- Braking distances improve measurably with lighter rotors and wheels — less rotating inertia means the braking system needs to do less work to decelerate
These aren't theoretical gains. They translate into lap times, and more importantly for road use, into the confidence you feel over rough surfaces at speed.
How to Reduce Unsprung Weight
Wheels — The Biggest Lever
Wheels are the single most impactful component to address. They're large, far from the center of rotation, and easily upgraded. Switching from a 13 kg cast wheel to a 9.5 kg forged monoblock saves 3.5 kg per corner — 14 kg total — with no other modifications.
Forged aluminum is the standard for this reason. The higher strength-to-weight ratio of forged 6061-T6 allows the same structural performance with significantly less material.
Brake Rotors
Upgraded two-piece rotors (aluminum hat, steel ring) reduce rotating unsprung mass significantly compared to solid cast iron rotors. Carbon-ceramic rotors go further but at extreme cost. For most builds, two-piece rotors offer the best value after wheels.
Tires
Tire weight varies more than most people realize — a high-performance summer tire in the same size can be 1–2 kg lighter than a touring tire. It's a secondary consideration, but worth noting when building a weight-optimized setup.
What Not to Change
Hub assemblies, control arms, and brake calipers are more difficult to lightweight without compromising safety or durability. Aftermarket lightweight control arms exist but are expensive and require careful selection — the weight saving rarely justifies the cost compared to wheel upgrades.
Frequently Asked Questions
Does unsprung weight affect ride comfort?
Yes — lighter unsprung mass generally improves ride quality over rough surfaces because the suspension can follow road irregularities more quickly, reducing the harshness transmitted to the cabin. Counterintuitively, lighter wheels often ride better than heavy OEM wheels, even without changing the suspension setup.
How much unsprung weight is too much?
There's no universal threshold, but as a rough guide, unsprung mass above 10% of total vehicle weight starts to noticeably affect dynamics. Most modern performance cars sit below this. The goal isn't to hit a specific number — it's to reduce it as much as practically possible within your budget and build goals.
Do heavier wheels hurt fuel economy?
Yes, modestly. The additional rotational inertia means the drivetrain works harder to accelerate and the brakes work harder to decelerate. The effect is most pronounced in city driving with frequent stop-and-start. On motorway driving at steady speed, the difference is minimal.
Is unsprung weight more important than total vehicle weight?
For handling dynamics specifically, yes — pound for pound, unsprung weight reduction has a larger effect than equivalent sprung weight reduction. For straight-line performance (acceleration, top speed), total weight is more relevant. Both matter; unsprung weight is just a higher priority if you're optimizing for handling.
