What Are Forged Aluminum Wheels? The Complete Guide



You've seen the term everywhere — forged aluminum wheels. Performance forums, wheel brands, custom shops. But what does "forged" actually mean, and why does it cost twice as much as a standard cast wheel? This guide breaks down everything: the manufacturing process, the real-world performance difference, and how to tell if forged wheels are worth it for your build.

What Are Forged Aluminum Wheels?

Forged aluminum wheels are made by compressing a solid billet of aluminum alloy under extreme pressure — typically 10,000 to 15,000 tons — into a rough wheel shape. That blank is then precision-machined on a CNC lathe and mill to its final form.

The result is a wheel with a grain structure that flows continuously through the material, following the shape of the wheel. This is fundamentally different from casting, where molten metal is poured into a mold and solidifies with random grain orientation.

The alloy used matters too. Most quality forged wheels start with 6061-T6 aluminum — an aerospace-grade alloy with excellent strength-to-weight ratio. The "T6" refers to the temper: solution heat-treated and artificially aged to maximum strength. It's the same material used in aircraft frames and high-performance bicycle components.

How Forged Aluminum Wheels Are Made

The manufacturing process has four main stages:

1. Billet Preparation

A cylindrical billet of 6061 aluminum is cut to a precise weight — heavier than the final wheel, because material will be removed in machining. The billet is heated to around 400–450°C to increase plasticity without melting.

2. Forging

The heated billet is placed into a die and compressed by a hydraulic press. The pressure closes any internal voids and aligns the grain structure along the stress lines of the wheel — spoke roots, hub area, rim flanges — exactly where strength is most needed.

3. CNC Machining

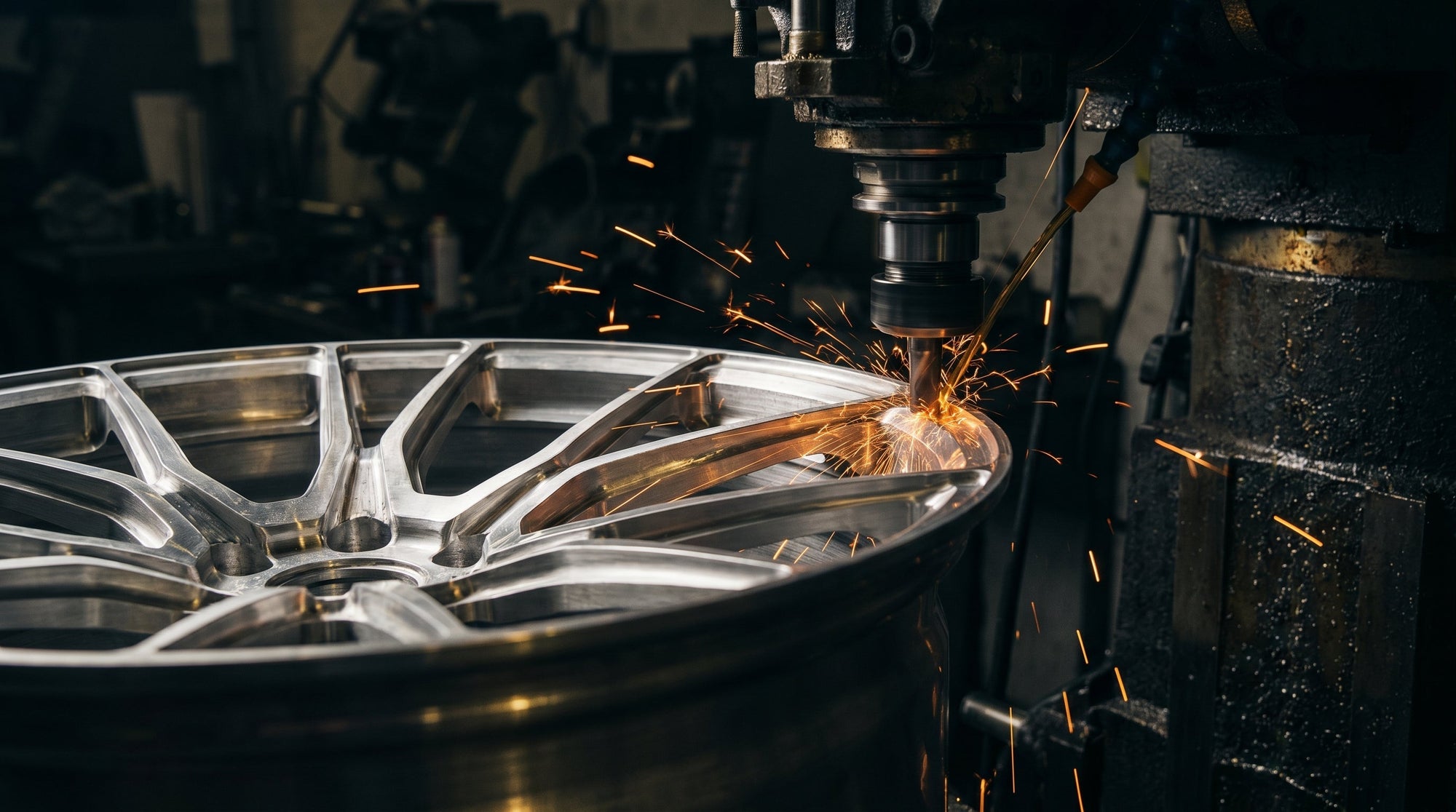

The forged blank is machined to final dimensions on multi-axis CNC equipment. This is where the design is fully realized: spoke profiles, lip depth, face detail, bolt holes, center bore, and valve stem hole are all cut to tight tolerances. A single wheel can require 4–6 hours of CNC time.

4. Finishing

The wheel is polished, sandblasted, or bead-blasted to prepare the surface, then finished — typically with powder coat, liquid paint, anodizing, or bare polished aluminum. High-end finishes like deep concave polishing are only possible on forged wheels because the material is dense enough to take a mirror finish without porosity showing through.

Forged vs Cast Wheels: The Real Difference

This comparison gets oversimplified constantly. Here's the honest breakdown:

	Forged	Cast
Manufacturing	Compressed billet + CNC machined	Molten metal poured into mold
Grain structure	Continuous, aligned with stress lines	Random orientation
Strength	~3× higher tensile strength	Baseline
Weight	15–25% lighter for same size	Heavier for equivalent strength
Porosity	None — solid billet	Micro-voids possible
Custom fitment	Full custom: diameter, width, offset, PCD	Fixed catalog sizes
Price	Higher	Lower

The weight difference is where you feel it most. Unsprung mass — the weight of wheels, tires, and brakes not supported by the suspension — directly affects how quickly your suspension responds to road inputs. Lighter wheels mean faster steering response, better ride quality over rough surfaces, and less rotational inertia to accelerate and brake.

A 2 kg per-wheel saving (8 kg total) is a realistic figure when switching from OEM cast to quality forged. On a 1,500 kg car, that's less than 1% of total mass — but because it's unsprung and rotating, the subjective feel is disproportionately larger.

Monoblock vs Multi-Piece Forged Wheels

Forged wheels come in two main constructions:

Monoblock (1-piece)

The entire wheel — center, barrel, and lip — is machined from a single forged billet. This is the strongest possible construction, with no joints or hardware. Monoblocks are lighter than multi-piece equivalents at the same size, and there's no risk of hardware loosening or barrel seals leaking. The trade-off: the design is fixed at the machining stage, so massive concave profiles require removing more material, which adds cost and weight.

2-piece and 3-piece

The center (face) is forged separately from the outer barrel (and inner barrel in 3-piece). They're bolted together with hardware and sealed. This allows extreme custom offsets and concave profiles — the face can be a standard depth while the barrel is extended to push the face far inward. It also allows center refinishing without dismounting tires. The downside: more components, more weight, more potential failure points.

For most street and track applications, monoblock forged is the right choice — stronger, lighter, simpler, and easier to maintain.

Are Forged Aluminum Wheels Worth It?

The honest answer: it depends on what you're optimizing for.

Yes, if:

• You want a custom fitment that doesn't exist in catalog sizes (specific offset, wide-body fitment, non-standard PCD)
• You're building a track car where unsprung weight matters
• You want a wheel that will outlast the car — forged aluminum doesn't crack under impact, it bends, which is repairable
• You care about finish quality and want a deep concave polished look that cast can't achieve

Maybe not, if:

• You're on a budget and standard catalog sizes fit your car
• The car is purely daily-driven on smooth roads with no performance driving

One underrated advantage: forged wheels don't shatter on impact. Cast wheels crack and fail suddenly. A forged wheel hit hard enough will bend at the rim — ugly, but still holding air, still controllable. On a track or spirited road drive, that difference can matter.

How to Choose Forged Aluminum Wheels for Your Car

Four measurements define fitment:

• Diameter — 18", 19", 20", 21". Larger diameter = more visual presence, requires lower profile tires to maintain rolling radius.
• Width — 8.5", 9", 10", 10.5". Wider allows wider tires for more grip. Must clear suspension and fenders.
• Offset (ET) — distance from wheel centerline to mounting face in mm. Lower ET pushes the wheel outward. Critical for flush fitment and avoiding hub/caliper clearance issues.
• PCD (Pitch Circle Diameter) — bolt pattern, e.g. 5×112 for most Audi/BMW/Mercedes, 5×114.3 for most Japanese cars. Must match exactly.

All 6061 WORKS wheels are custom-manufactured to your exact car's specifications. You provide the model, we confirm the fitment — diameter, width, offset, PCD, center bore, and hardware.

Frequently Asked Questions

How much do forged aluminum wheels weigh?

A typical 19×9 forged monoblock weighs 8.5–10 kg depending on design. A comparable cast wheel in the same size typically weighs 11–13 kg. Exact weight depends on spoke design — fewer, thicker spokes weigh more than many thin spokes.

Can forged aluminum wheels be repaired?

Yes. Because forged aluminum bends rather than cracks, bent lips and minor curb damage can be rolled and welded by a specialist wheel repair shop. Cast wheels that crack cannot be safely repaired.

What's the difference between 6061 and 7075 aluminum?

7075 is stronger but harder to machine and more expensive. 6061-T6 is the industry standard for forged wheels — it offers the best balance of strength, machinability, weight, and corrosion resistance for this application. 7075 is used in aerospace structural components where even higher strength is needed at a cost premium.

How long do forged wheels last?

Indefinitely under normal use. 6061-T6 aluminum doesn't fatigue under typical road loads. The finish (powder coat, paint) will eventually need refinishing after years of use, but the structural integrity of a forged wheel doesn't degrade with age.

Are forged wheels safe for daily driving?

Yes — forged wheels are safer than cast for daily driving because they absorb impact energy through deformation rather than fracture. Potholes and curbs that would crack a cast wheel will dent a forged one instead.
