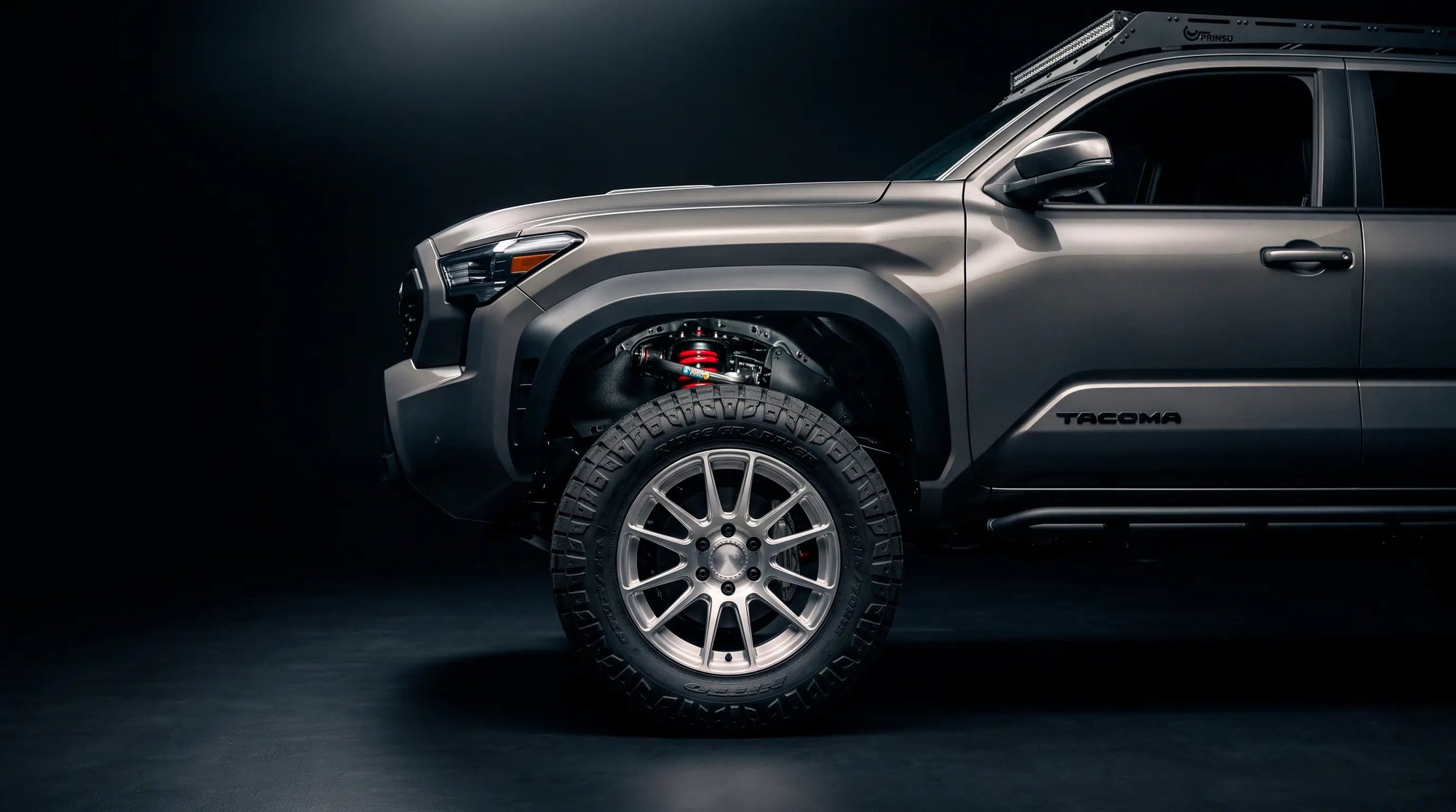

Toyota Tacoma 4th Gen Wheel Fitment Guide — Sizes, Offsets, and What Fits at Every Level

The 4th gen Tacoma (2024+) moves to the TNGA-F platform — and with it comes a hub spec that's incompatible with every previous Tacoma generation. Same bolt pattern, everything else changed. This guide covers what's new, why 3rd gen wheels don't bolt on, and the exact fitment roadmap from stock height to fully built.

Toyota Tacoma 4th Gen — Key Hub Specs

• Bolt pattern: 6×139.7
• Centre bore: 95.1mm (reduced from 106.1mm on 3rd gen)
• Wheel nut thread: M14×1.5 (upgraded from M12×1.5)

The 4th gen shares this exact hub spec with the 2025+ 4Runner, 2022+ Tundra, 2022+ Sequoia, 2024+ Land Cruiser 250, and Lexus GX550. Wheels are fully cross-compatible across all these platforms — a useful detail if you're running multiple Toyota trucks.

Why 3rd Gen Tacoma Wheels Don't Fit the 4th Gen

Three changes happened simultaneously:

1. Larger studs (M14 vs M12): The lug holes in 3rd gen wheels are sized for M12 hardware. The thicker M14 studs on the 4th gen won't pass through — old wheels need to be drilled out to fit, which is not recommended.
2. Smaller centre bore (95.1mm vs 106.1mm): 3rd gen wheels have a larger 106.1mm bore. While a wheel with a larger bore can theoretically be fitted with hub-centric rings, the M14 stud problem still applies. You cannot fit a wheel with a smaller bore onto a larger hub at all.
3. Different offset geometry: More on this below — the TNGA-F platform sits wider, which means the old ET0 "sweet spot" from 3rd gen now produces extreme poke on the 4th gen.

Factory Wheel Specs by Trim

Trim	Wheel	Offset	Tyre
SR / SR5	17×7.5	ET55	245/70R17
TRD Off-Road / PreRunner	17×7.5	ET55	265/70R17
TRD Sport / Limited	18×8	ET45	265/65R18
TRD Pro / Trailhunter	18×8	ET45	265/70R18

The Offset Trap — Why 3rd Gen Logic Doesn't Apply

On 3rd gen Tacomas, ET0 was widely considered the sweet spot for aftermarket builds — wheels sat flush with the fender edge, looking intentionally wide without excessive poke. That logic does not carry to the 4th gen.

The TNGA-F platform positions the hub further outboard relative to the body. Running ET0 on a 4th gen pushes the wheel 25–35mm beyond the fender line — far enough to be immediately visible and problematic without a lift and fender modification. What was flush on the 3rd gen is aggressive poke on the 4th gen.

ET+25 to +35 — Daily Driver Fitment

Sits slightly wider than stock without exceeding the fender line. Preserves stock suspension geometry. No lift required for 33" tyres at this offset. The cleanest choice for a truck that's primarily on road with occasional off-road use.

ET+12 to +18 — Off-Road Look

Slight poke beyond the fender edge — the aggressive stance associated with purpose-built off-road trucks. Requires a leveling kit for 34"+ tyres and crash plate removal. Works well with aftermarket fender flares if available for your trim.

ET0 and Below — Committed Build Only

Wheels protrude 25–35mm or more beyond the arch. Without a significant lift (3"+), deep-drop suspension modification, and trimming of bumper corners and inner arches, this offset causes contact at full steering lock and under suspension compression. Not a street build offset — this is for show trucks and dedicated builds.

Tyre Size Roadmap

Tier 1 — 33" on Stock Height

Sizes: 285/70R17 (32.7"), 275/65R18, 285/60R18
Offset: ET+25 to +33
Lift required: None
Mods required: None at the correct offset

285/70R17 is the most popular choice at this level — it's the sweet spot tyre that fits cleanly on stock height at ET+25, looks proportional on the 4th gen body, and works on road and trail. At ET0, this same tyre rubs at full lock in reverse — offset is not optional at stock height.

Tier 2 — 34" with Leveling Kit

Sizes: 285/75R17, 285/65R18, 295/60R18
Offset: ET+20 to +33
Lift required: 1.5–2" leveling kit
Mods required: Crash plate removal

The crash plates sit behind each front wheel — two bolts per side, fully removable in about five minutes. Removing them gains approximately 4 inches of clearance in the front arch, which is what makes 34" fitment clean without permanent modification. The plates are bolt-on and fully reversible, unlike previous generation Tacomas where similar brackets required cutting.

Tier 3 — 35" with Full Lift

Sizes: 35×12.50R17, 295/65R18, 285/70R18
Offset: ET+12 to +25
Lift required: 3" lift kit
Mods required: Crash plate removal, professional alignment

At this size, alignment becomes critical — set caster as far forward as possible to centre the tyre in the arch and prevent contact with plastic trim at full lock. Running ET+12 or below with 35" tyres brings the tyre close enough to the body that bumper corner trimming and inner fender work may be required. At ET+18 to +25, 35" clears properly on a 3" lift without body modification.

The Sweet Spot Configuration

The most practical, most popular, cleanest fitment on the 4th gen Tacoma:

• Wheel: 17×8.5 or 17×9 at ET+25
• Centre bore: 95.1mm
• Hardware: M14×1.5
• Tyre: 285/70R17 (32.7")
• Lift: None required

This setup sits visibly wider than stock, fills the arch properly, and requires no suspension modification or arch work. It's the configuration that makes the 4th gen look the way most owners want it to look, with zero compromise on daily usability.

Load Rating — Same Warning as the 4Runner

The TNGA-F frame is stiffer than previous Tacoma platforms. Running Load Range E (10-ply) tyres — designed for heavy diesel trucks carrying significant payload — results in a harsh, unforgiving ride that eliminates the refinement the platform offers. The community consensus is clear: Load Range B (4-ply) or Load Range C (6-ply) for the best balance of off-road performance and road comfort.

Tyre Recommendations

All-Terrain / Daily

• BFGoodrich All-Terrain T/A KO3 — the most discussed new AT tyre on the 4th gen platform
• Nitto Ridge Grappler — rugged terrain hybrid, bestseller for trucks that need to look aggressive without highway noise
• Toyo Open Country A/T III — popular for expedition builds, balanced road comfort and trail performance

Mud / Off-Road

• Mickey Thompson Baja Boss A/T — aggressive sidewall profile, note that large sidewall lugs add physical width beyond nominal tyre size
• Yokohama Geolandar M/T — proven choice for dedicated off-road builds

Frequently Asked Questions

What bolt pattern is the Toyota Tacoma 4th gen?

6×139.7 with 95.1mm centre bore and M14×1.5 thread. Cross-compatible with 2025+ 4Runner, 2022+ Tundra, 2022+ Sequoia, 2024+ Land Cruiser 250, and Lexus GX550.

Will 3rd gen Tacoma wheels fit the 4th gen?

No. The 4th gen uses M14×1.5 studs — 3rd gen wheels have lug holes sized for M12 and won't pass over the larger studs. The centre bore also changed from 106.1mm to 95.1mm. 3rd gen wheels require drilling and hub-centric rings to fit — not recommended.

What offset should I run on the 4th gen Tacoma?

ET+25 to +33 for stock height daily builds with up to 33" tyres. ET+20 to +25 with a leveling kit for 34" builds. ET+12 to +25 for 35" on a 3" lift. Do not use ET0 from 3rd gen logic — the 4th gen TNGA-F platform sits wider and ET0 produces significant poke that requires extensive modification.

What is the largest tyre that fits the 4th gen Tacoma without a lift?

285/70R17 (32.7") at ET+25 to +33 on stock height — no lift, no crash plate removal required. 34" requires a leveling kit and crash plate removal. 35" requires a 3" lift kit.

What are crash plates and do I need to remove them?

Crash plates are protective brackets behind each front wheel, secured with two bolts per side. Removing them gains approximately 4 inches of front arch clearance — required for 34"+ fitment. Unlike previous Tacoma generations, they are fully bolt-on and reversible. Removal takes about five minutes per side.
