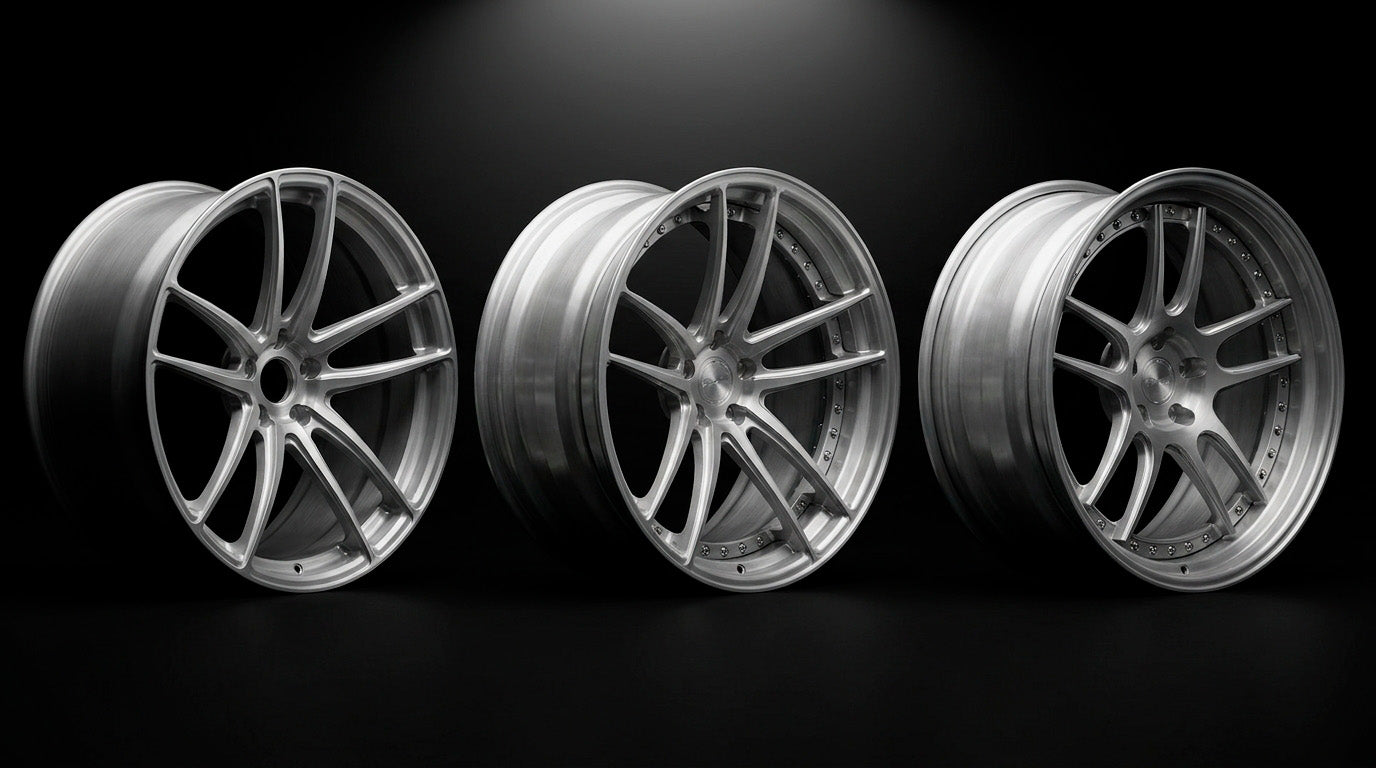

Monoblock vs 2-Piece vs 3-Piece Wheels — What's the Difference and Which Should You Choose

Forged wheels come in three distinct constructions — monoblock, 2-piece, and 3-piece. Each is built differently, performs differently, and suits a different type of build. Understanding the difference isn't just useful knowledge — it's the decision that shapes everything else about your wheel order.

What Are Monoblock Wheels?

A monoblock wheel is machined entirely from a single forged billet of aluminum. No joints, no hardware, no separate barrel — the face, spokes, and rim are one continuous piece of metal.

The process starts with a solid billet of 6061-T6 aluminum compressed under 12,000 tons of pressure. This forging step closes any voids in the material and aligns the grain structure along the stress lines of the wheel. The result is a denser, stronger blank than casting can produce. That blank is then CNC-machined to final form — spoke geometry, lip profile, bolt holes, centre bore — all cut to sub-millimetre tolerances.

Because the entire wheel is one piece, forged monoblock wheels carry no weak points at joints or fasteners. The structural integrity is uniform throughout. This is why monoblock is the standard construction for motorsport and the preferred choice for any application where weight and reliability are the priority.

Weight advantage over cast: 20–30% lighter at equivalent size and strength — purely because the forged material is denser and requires less of it to achieve the same load rating.

What Are 2-Piece Wheels?

A 2-piece wheel consists of a forged center (the face and spokes) bolted to a separate barrel (the rim section). The two components are joined with hardware — typically stainless steel bolts around the inner barrel — and sealed.

The separation of center and barrel allows for much greater offset and width flexibility than a monoblock. A standard-depth center can be paired with a deep-stepped barrel to push the face far inward — creating a concave profile that would require removing excessive material from a monoblock blank. This is why 2-piece construction is popular for aggressive fitments and deep-dish builds.

The trade-off: additional weight from hardware, a joint that requires periodic inspection, and slightly more complex maintenance compared to forged monoblock wheels.

What Are 3-Piece Wheels?

3-piece wheels add a third component — the outer lip is a separate piece from both the center and the inner barrel. The assembly: forged center + inner barrel + outer lip, all joined with hardware and sealed around the barrel seam.

This construction offers maximum customization. Lip width, barrel depth, and center depth can each be adjusted independently. Want a polished outer lip with a matte center? Possible. Want to rebuild the wheel with a different lip profile years later? Also possible — the lip can be replaced. For show builds and high-spec custom fitments, 3-piece is the top of the range.

The downsides: more hardware, more seals, more weight, and more maintenance points than either monoblock or 2-piece. 3-piece is optimized for customization and aesthetics — not for minimum weight.

Monoblock vs 2-Piece vs 3-Piece: Head-to-Head

	Monoblock	2-Piece	3-Piece
Construction	Single forged billet	Forged center + barrel	Forged center + inner + outer lip
Weight	Lightest	Moderate	Heaviest
Strength	Highest — no joints	High	High
Offset flexibility	Good	Excellent	Maximum
Concavity range	Moderate	Deep	Extreme
Maintenance	None	Hardware inspection	Hardware + seal inspection
Repairability	Rim repair possible	Barrel replaceable	Lip replaceable
Best for	Track, street, daily	Aggressive street fitment	Show builds, maximum custom

Which Construction Is Right for Your Build?

Choose Monoblock If:

• Weight reduction is a priority — track days, performance street driving, or just reducing unsprung mass on a heavy car
• You want zero maintenance — no hardware to check, no seals to inspect
• The fitment works within standard offset ranges for your platform
• You want the strongest possible construction with no structural weak points

For most builds — street cars, track cars, daily drivers — forged monoblock wheels are the correct answer. They're the lightest, strongest, and simplest construction available.

Choose 2-Piece If:

• You need extreme concavity or an offset that requires a very deep barrel step
• You want the option to refinish the center without dismounting tyres
• You're building a wide-body car where the offset range of monoblock isn't sufficient

Choose 3-Piece If:

• Maximum customization is the goal — mixed finishes, interchangeable lips
• You're building a show car where visual detail is the priority
• You want the ability to rebuild or reconfigure the wheel in the future

Why 6061-T6 aluminum Matters Across All Three Constructions

Regardless of construction type, the starting material defines the wheel's performance ceiling. All three constructions at 6061works use aerospace-grade 6061-T6 aluminum billet — solution heat-treated and artificially aged to maximum hardness.

6061-T6 offers the best balance of strength, machinability, and corrosion resistance available for wheel applications. It's the same alloy used in aircraft frames and high-performance structural components. Under the 12,000-ton press, the grain structure of the billet flows into alignment — creating a material that's significantly denser and more consistent than anything a casting process produces.

The practical result: forged monoblock wheels and forged multi-piece centers from 6061-T6 are 20–30% lighter than cast equivalents at the same structural rating. That weight reduction is the reason the material commands a premium — and the reason it's worth it.

Frequently Asked Questions

Are monoblock wheels stronger than 2-piece or 3-piece?

Yes — monoblock construction has no joints or fasteners, so structural integrity is uniform throughout. 2-piece and 3-piece wheels are strong, but the hardware joints are potential weak points under sustained load or impact that monoblock doesn't have.

Why are 3-piece wheels heavier than monoblock?

3-piece wheels add weight from hardware (bolts around the barrel seam), seals, and the additional material at each join. A monoblock of the same size, machined from a single billet, eliminates all of this. For performance applications, that weight difference matters.

Can you get deep concave on a monoblock wheel?

Yes, but within limits. Deep concave on a monoblock requires removing more material from the blank, which adds machining time and cost, and eventually limits how deep you can go before structural considerations apply. For extreme concavity, 2-piece or 3-piece construction offers more flexibility.

What is the maintenance difference between monoblock and multi-piece wheels?

Monoblock wheels require no maintenance specific to the wheel construction — just standard cleaning. 2-piece and 3-piece wheels should have their hardware torque checked periodically, and 3-piece barrel seals should be inspected for air loss over time.

Which forged wheel construction is best for track use?

Monoblock. Lightest weight, no hardware to come loose under vibration, and the highest structural integrity of the three constructions. Track applications prioritise minimum unsprung mass and reliability — both favour monoblock.
