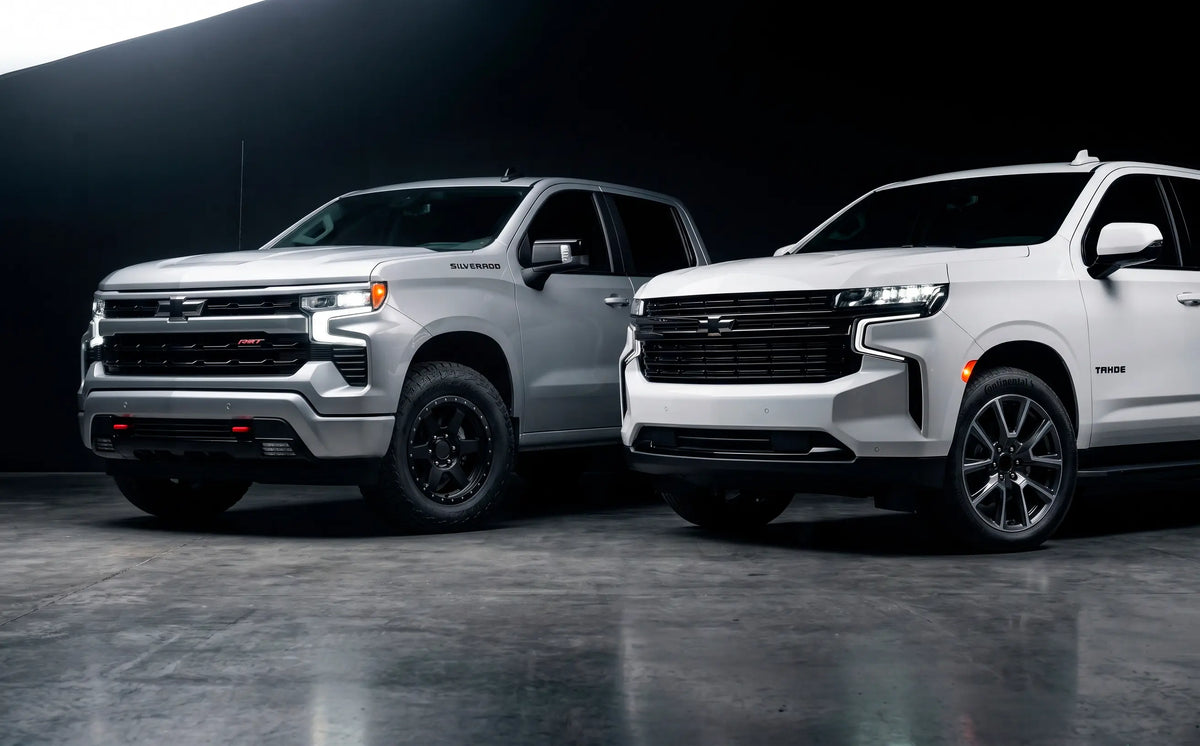

Silverado, Sierra, Tahoe & Suburban Wheel Fitment Guide — GM T1XX Offsets, Sizes, and Brake Clearance

The GM T1XX platform underpins the Silverado 1500, Sierra 1500, Tahoe, Suburban, Yukon, and Escalade. One bolt pattern, one hub bore — but four different sets of constraints depending on whether you have a solid rear axle or independent rear suspension, coil springs or Air Ride. And one design problem that causes more failed wheel orders on this platform than anything else: the front brake callipers.

Platform Coverage and Hub Specs

• Silverado 1500 / Sierra 1500: 2019 onwards
• Tahoe / Suburban / Yukon / Escalade: 2021 onwards
• Bolt pattern: 6×139.7 (6×5.5")
• Centre bore: 78.1mm
• Wheel nuts: M14×1.5, 60° conical seat
• OEM wheel specs: 18×8.5 ET+26 | 20×9 ET+28 | 22×9 ET+28

The bolt pattern and hub bore are identical across every T1XX vehicle. What differs — significantly — is the rear suspension architecture and the ride height behaviour, which is why a wheel spec that works perfectly on a Silverado can rub on a Tahoe and sit wrong on a Yukon with Air Ride.

The X-Factor Problem — Why Off-the-Shelf Wheels Fail on T1XX

This is the single most important section on this page, and the reason most concave wheel designs cannot simply be adapted from an older GM platform.

The T1XX front brake callipers sit significantly further outboard than those on the previous GMT900 and K2XX platforms. GM increased calliper size and repositioned the assembly, and the result is that the calliper body now occupies space that a deep-concave spoke design would normally sweep through.

What X-Factor Actually Means

X-Factor is the clearance envelope between the wheel's mounting face and the point where the spoke begins to curve outward. On a wheel with aggressive concavity, the spokes bend outward close to the mounting pad — that's what creates the visual depth. On the T1XX, if that bend starts too early, the inner face of the spoke contacts the front face of the brake calliper. The wheel physically will not seat.

For T1XX fitment, the spoke geometry needs the bend to begin a minimum of 45–50mm outboard of the mounting plane. This is achieved either by increasing the thickness of the hub backpad, or by redesigning the spoke curve so the concavity develops further outboard. Both approaches require the wheel to be designed for this platform specifically.

This is also why a T1XX owner who orders a visually identical concave wheel spec'd for a different truck frequently ends up with a wheel that cannot be mounted. The bolt pattern matches, the offset matches, the bore matches — and the spoke still hits the calliper. When the wheel is forged to order, the X-Factor is calculated for the actual calliper on the actual vehicle, and the concavity is designed around it rather than compromised.

If You Have a Big Brake Kit

A Brembo 6-piston or similar aftermarket kit changes the clearance envelope again — usually requiring more X-Factor than the factory 4-piston calliper. Big brake kits must be declared before a wheel goes into production. A wheel designed for the stock calliper will not clear an upgraded one.

Front Arch Brackets — The Rubbing Threshold

On Silverado and Sierra pickups, the front arches contain metal brackets that mount the inner fender liners and mud flaps. These sit at the rear of the front arch — exactly where the tyre sweeps during steering lock.

The threshold is clear: at ET+12 and above, there is no contact. Below ET+12 — and particularly at ET0 and into negative offsets — the tyre contacts the rear section of the front arch during full lock. The fix depends on how far below the threshold you go:

• ET0 to ET+12: Mud flap removal and light heat-forming of the plastic liner is usually sufficient.
• ET-12 and below: Requires the "NorCal Trim" — trimming or folding back the metal arch bracket itself, plus liner removal. This is a permanent modification and the correct approach for genuinely aggressive stance builds.

Rear Suspension — Trucks and SUVs Behave Differently

Silverado / Sierra — Solid Rear Axle

Leaf-sprung solid axle. The rear arch has substantial internal clearance because the axle moves as a single unit with no camber change and no control arms inside the arch. This is what allows extreme rear fitments on T1XX pickups — 12" wide wheels at ET-44 are achievable on lifted trucks because the rear arch simply has the space. The rear is rarely the limiting factor on a pickup build; the front arch and calliper clearance are.

Tahoe / Suburban / Yukon / Escalade — Independent Rear Suspension

IRS changes the calculation entirely. There are control arms inside the rear arch, and the wheel moves through a camber curve as the suspension compresses. Two consequences:

High positive offset becomes a problem, not a solution. This is counterintuitive. On a wide wheel, running high positive offset (ET+35, for example) pulls the wheel face inboard — and on an IRS platform, that brings the inner barrel closer to the rear control arms. On a solid-axle truck, high positive offset is simply "tucked". On a T1XX SUV, it can contact suspension components. The safe range is narrower at both ends.

Camber change under compression. As the rear suspension compresses, the wheel gains negative camber and the top edge of the tyre moves inboard while tracking upward. A fitment that appears clear at static ride height can contact the upper inner arch under load or over bumps.

Air Ride — The Setting Nobody Accounts For

Tahoe, Suburban, Yukon, and Escalade are frequently equipped with Air Ride adaptive suspension. On the highway, and in Entry/Exit mode, the vehicle lowers by 20–50mm.

This matters because a flush fitment calculated at normal ride height puts the fender edge directly onto the tyre when the suspension drops. The wheel that sat perfectly level with the arch in the driveway now has the arch resting on the tyre shoulder at motorway speed — which damages the tyre sidewall, damages the fender, and does so progressively rather than in one obvious event.

For any T1XX vehicle with Air Ride, the offset needs to be more conservative than the visual calculation suggests: ET+20 to ET+25 is the safe range. Air Ride is not a detail to mention after ordering — it changes the spec.

Fitment Guide — Tahoe / Suburban / Yukon / Escalade

Build	Wheel	Offset	Tyre	Suspension
OEM Clean	22×9.5	ET+22 to +26	275/50R22 or 285/45R22	Stock — Air Ride safe, zero contact
Flush Street	22×10 or 24×9.5	ET+18 to +22	285/45R22 or 295/35R24	Stock or 1" leveling — requires precise X-Factor
Aggressive Street	24×10	ET+15 to +18	305/35R24	1.5–2" leveling — minor liner trim at full lock

Fitment Guide — Silverado 1500 / Sierra 1500

Build	Wheel	Offset	Tyre	Arch Work
Stock / Daily	20×9 or 22×9	ET+15 to +20	275/60R20 or 285/45R22	None
Leveling Clean	20×9 or 20×10	ET0 to +12	33×12.50R20	Mud flap removal, light liner heat-forming
Aggressive Stance	20×10 or 22×10	ET-12 to -18	33×12.50R20 or R22	NorCal Trim — bracket folded or cut
Lifted Build	22×12 or 24×12	ET-44	35×12.50R22 or R24	Front bumper and arch liner trimming

Factory Off-Road Trims — Trail Boss and AT4

Silverado Trail Boss and Sierra AT4 come with a factory 2" lift. This is not the same as an aftermarket leveling kit — the factory lift includes revised suspension geometry and different upper control arms. When spec'ing wheels, a factory-lifted trim should be treated as its own configuration: it has more arch clearance than a stock truck but different geometry than a leveled one. Specify the trim by name.

Pre-Production Checklist

Before a set of forged wheels goes into production for a T1XX vehicle, five things need to be confirmed. Getting these right at the order stage is the difference between a wheel that bolts on and a wheel that has to be re-made.

1. Exact model, year, and trim — e.g. 2023 Chevrolet Tahoe High Country, or 2022 GMC Sierra AT4. Trim matters because it determines both suspension and brake configuration.
2. Suspension type — factory coil springs, Air Ride, factory off-road lift (Trail Boss / AT4), or an installed aftermarket leveling or lift kit with the exact height.
3. Brake system — factory 4-piston callipers, or an aftermarket big brake kit (specify the kit). This determines the X-Factor.
4. Target tyre size — the wheel width and offset are calculated around the tyre, not independently of it.
5. Desired stance — tucked (inside the arch, factory-like), flush (level with the fender), or poke (protruding beyond the body).

Why This Platform Rewards Custom Forging

The T1XX is a platform where off-the-shelf wheel catalogues run out of answers quickly. The combination of large outboard callipers, a hard rubbing threshold at ET+12 on pickups, IRS geometry constraints on the SUVs, and Air Ride ride-height variation means the correct spec is frequently a combination that no catalogue offers — a specific width at a specific offset with a specific X-Factor.

Forging to order removes the compromise. The offset is set to the number your build actually needs rather than the nearest available. The X-Factor is calculated around the calliper on your vehicle. The concavity is designed to be as deep as the calliper allows and no deeper. And because forged construction runs 30–40% lighter than cast at the same dimensions, a 22" or 24" wheel adds far less unsprung mass — which matters on a vehicle running adaptive dampers calibrated around factory wheel weight.
